キャップ＆プラグ

テーパード・キャップ＆プラグ

テーパーキャップ/プラグ - スタンダード

テーパーキャップ/プラグ - スタンダード

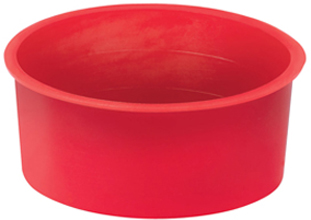

Tapered Caps/Plugs - Standard

Tapered Caps/Plugs

キャップやプラグとして使われる
取付け・取り外し可能
140種以上の寸法あり
赤色LDPE
保管や運送中に損傷を避け、並びに防塵・防湿・耐腐食の保護が可能

「本Website掲載単価は御参考価格です。御手数をお掛けして申し訳ございませんが、御見積価格を御提示させて頂きますので、
以下のアドレスまで御連絡を頂けます様御願い申し上げます。」
** sales@essentracomponents.jp/ CSECJapan@essentra.com ご不便をおかけして申し訳ございませんが、
何卒よろしくお願い申し上げます。

図面ダウンロードは会員登録・ログインが必要となります。

サンプル

パーツ
No

d1 (mm)

d2 (mm)

d3 (mm)

d4 (mm)

D (mm)

h (mm)

To Fit Thread Size As Cap

To Fit Thread Size As Plug

Colour

<

ユニット単位	単価	在庫	数	合計金額	添付

52071

21.2

23.2

21.7

19.3

27.3

12.3

-

M24

Red

¥0

50222

4.7

8.5

5.7

2.5

11.7

22.5

-

-

Red

¥0

15139

43.4

48.5

47

42

53.3

24.5

-

-

Red

¥0

15138

36.3

38.3

37

34.6

42.3

12

-

-

Red

¥0

15137

12.8

15.1

13.2

10.7

18.5

23.1

-

-

Red

¥0

15136

46

50

48

44.3

54

24.8

-

-

Red

¥0

12999

26.6

29.7

28.3

24.6

31.6

26.3

3⁄4" BSP

7⁄8" BSP

Red

¥0

12925

19.4

22.5

21.3

18

26.5

19

-

-

Red

¥0

12901

12

14.8

12

10.5

17.5

11

-

----

Red

¥0

12746

49.8

54

52

47.5

58

24.3

-

-

Red

¥0

12577

156

162.3

158.8

151.8

167.3

36.7

-

-

Red

¥0

12576

139.5

145.6

140

135

150

36.5

-

-

Red

¥0

12575

129

135.1

132

124

139.5

36.5

-

-

Red

¥0

12574

111.5

117.6

115

107.5

122

35

-

-

Red

¥0

12573

94.5

100.6

97

91

103.6

34.5

-

-

Red

¥0

12572

87.5

93.6

90.5

84.3

96.7

34.3

-

-

Red

¥0

12570

35.9

40.2

37.5

33.2

44.1

24.5

-

-

Red

¥0

12569

31.6

36.3

34

29.8

40.2

24.1

1 5⁄16" BSP

1 5⁄16" BSP

Red

¥0

12568

31.1

34.3

32

29.3

38.1

17.5

-

13⁄8" UNF, M36

Red

¥0

12567

24.6

29.5

27.5

22.5

34

27.5

-

-

Red

¥0

12565

22.5

25.5

23.3

20

28.9

17.8

7⁄8" UNF

-

Red

¥0

12564

16.1

17.6

15.5

14.5

21

8.5

-

-

Red

¥0

12563

12.5

14

12

10.5

17.5

8.9

7⁄16" UNF

-

Red

¥0

12562

8.6

10.3

8.2

7

13.7

9.8

-

-

Red

¥0

12483

9

10.7

8.8

7.5

13.9

11.5

-

-

Red

¥0

12482

7.7

9.3

7

5.5

12.7

8

1⁄4" UNF

-

Red

¥0

12481

14.9

16.4

14.5

13.5

21

11.5

-

-

Red

¥0

12480

33.9

38.3

36.5

31.9

42.3

24.5

-

-

Red

¥0

12431

54

58.4

55

50.8

62.4

24.5

-

-

Red

¥0

12430

47.2

51.9

48.7

44.5

55.8

24

-

-

Red

¥0

12429

40.8

44.7

41.8

37.7

49

24

-

-

Red

¥0

12428

30.5

33.3

31.1

28.4

37

14.5

7⁄8" BSP

15⁄16" x 12 UNF

Red

¥0

12427

24

26.9

25

21.9

31

18

-

-

Red

¥0

12426

22.7

24.9

22.7

20.8

27

12

-

-

Red

¥0

12425

20.5

23.2

21.2

18.5

27.2

17.5

-

-

Red

¥0

12424

18.3

21.4

19.3

16.4

25.4

17.5

-

-

Red

¥0

12423

15.5

17.1

15

13.4

20.6

8.5

-

-

Red

¥0

12422

11.3

12.9

10.9

9.4

16.3

8.5

-

-

Red

¥0

12421

11.2

14

12.1

9.2

17.5

18.5

-

-

Red

¥0

12420

10.6

12.2

10

8.6

15.6

9.8

-

-

Red

¥0

12419

5.6

7

5.4

4

10.5

8.4

-

-

Red

¥0

12199

98

102

98.5

94.8

107.2

24.7

-

-

Red

¥0

12198

34.9

36.4

35.2

33.1

42.7

8.2

-

-

Red

¥0

12197

17.2

20.2

18

15.5

24.2

18

-

-

Red

¥0

12196

16.6

18.5

16.5

14.5

21.9

13

-

-

Red

¥0

11173

29.2

31.2

30.3

28

34.7

12.7

M22 x 2

M33,1" BSP

Red

¥0

11172

42.5

44.8

43

40.7

50.7

12.6

-

-

Red

¥0

11170

77.1

80.7

78.2

74.8

85.7

19

21⁄2" BSP

-

Red

¥0

11169

57.5

57.6

56.1

55.2

63.6

12.8

-

-

Red

¥0

11168

55.4

58.8

57.2

53.7

65

25.1

M58

2" BSP

Red

¥0

11167

33.3

34.4

32.8

31.4

38.1

9.5

-

-

Red

¥0

11139

16.4

18.3

16.9

14.3

22.2

12.3

M16, 5⁄8" UNF

3⁄4" UNF

Red

¥0

11131

47.5

50.3

49

45.2

54

25

-

-

Red

¥0

11115

38.6

40.6

39

37.1

44.5

12.7

11⁄2" UNF

-

Red

¥0

11100

59.3

67.3

64.1

56.7

70.3

31.7

-

-

Red

¥0

11088

17.7

19.6

17.3

15.2

22.2

12.7

3⁄8" BSP

M20

Red

¥0

11075

62

66.4

64.3

59

71

28

-

-

Red

¥0

11064

68.1

70.9

69.3

66.3

74.6

19

-

-

Red

¥0

11047

53.5

57

55.3

51.2

62.4

25.1

13⁄4" BSP

M56, M55

Red

¥0

11037

80

86.1

82

77.5

89.8

25.1

-

-

Red

¥0

11023

76.8

82.2

80.8

74.8

85.7

25.4

-

-

Red

¥0

110204

44.4

47.7

46.1

42.8

51

19

M45 x 1.5/2/3

M48 x 2, 17⁄8" JIC/UNF, 11⁄2" BSP

Red

¥0

110201

25.2

29.2

27.7

23.7

33

19

-

----

Red

¥0

110200

22

24.8

23.2

20.4

29

17

M22 x 1.5

-

Red

¥0

110198

17.5

20.1

18.5

15.9

24

14.5

M18 x 1.5, M18 x 2

1⁄2" BSP

Red

¥0

110197

17.1

19.4

17.8

15.5

22

13

3⁄8"BSP

M20 x 1.5

Red

¥0

10991

4.4

6.1

4.5

2.8

9.5

9.5

M4

1⁄4" UNF

Red

¥0

10935

51.5

54.1

52

49.6

58.3

18.5

-

-

Red

¥0

10838

33.9

37.3

35.8

32

42.2

12.3

13⁄8" UNF

1 1⁄8" BSP

Red

¥0

10836

2.9

4.6

3

1.3

7.9

9.5

-

-

Red

¥0

10820

48

52.7

50.7

46.3

57.1

25.4

-

-

Red

¥0

10812

44.1

46.7

45.7

42.8

49.8

18.4

-

-

Red

¥0

10771

106.7

111.7

107.4

107.4

113.3

28.6

-

-

Red

¥0

10750

10

11.8

10

8.5

15

9.5

3⁄8" UNF

M12

Red

¥0

10732

24.7

27.7

26.1

23.2

32

19

M25, 1" UNF

M28, M30, 11⁄8" UNF

Red

¥0

10728

19

21.5

19.7

17.6

25.8

14.3

-

M22 x 1.5 , 7⁄8" UNF

Red

¥0

10727

6.2

7.6

5.9

5

11.1

9.5

M6

M8, 5⁄16" UNF

Red

¥0

10688

101.9

107.5

103

98

109

28.6

-

-

Red

¥0

10676

21.3

23.2

21.5

19.2

27

15.9

M20 x 2.5, 1⁄2" BSP

5⁄8" BSP

Red

¥0

10624

51.1

54.4

52

47.7

57

25

-

-

Red

¥0

10617

74

77

73.9

71.5

82.5

18.7

-

-

Red

¥0

10616

55

61

59

52.2

65

25

-

-

Red

¥0

10551

98.2

103.3

99

95

106

28.8

-

-

Red

¥0

10550

74

76.8

73.4

70

80

24.4

-

-

Red

¥0

10549

7.7

9.1

7.7

6.3

12.7

9.5

-

3⁄8" UNF

Red

¥0

10491

36.9

40.6

39

35

44

22.5

M38

11⁄4"BSP

Red

¥0

10485

39.6

42.7

41.1

38.2

47.6

18.5

M39, M40

M42

Red

¥0

10455

108

114.1

111.6

106.4

118.5

35.2

-

-

Red

¥0

10439

45.9

46.3

45

44.3

50.8

9.5

-

M48

Red

¥0

10438

13.6

15.3

13.7

12.1

19

11.2

1⁄4" BSP, 1⁄2" UNF

M16

Red

¥0

10424

14.7

17

15.4

13.2

20.6

12.7

-

M18 x 1.5

Red

¥0

10421

11.3

13.2

11.6

9.8

17

11

-

-

Red

¥0

10399

64.5

67.3

65.6

62.1

70.6

15.8

-

-

Red

¥0

10394

17.8

20

18.3

16.4

23.8

13.4

M18

1⁄2" BSP

Red

¥0

10376

22

25

23

20.5

28.5

15.9

M22

1" UNF

Red

¥0

10356

146.8

151

148.6

142.8

159.5

33

-

-

Red

¥0

10355

124

128

125

121

134

23

-

-

Red

¥0

10353

84.2

90.8

88.3

82.7

94.5

28

3" BSP

-

Red

¥0

10342

14.2

16

14.4

12.7

19

12.1

M14

3⁄8" BSP

Red

¥0

10325

9.4

10.8

9.3

7.7

14

8.5

-

-

Red

¥0

10304

88.1

93.3

89.9

85.1

96.5

28.6

-

-

Red

¥0

10302

70

75.8

74

68.1

79.4

25.4

-

M76, M75, 21⁄2" BSP

Red

¥0

10292

63.3

69.8

67.8

61.5

73

25.4

-

-

Red

¥0

10289

8.4

10

8.2

6.9

13.5

9.5

M8

M10

Red

¥0

10272

30

32.6

30.7

27.5

36.7

15.2

M30

M33,1" BSP

Red

¥0

10253

92.1

97

94

88.3

100

32

-

-

Red

¥0

10252

41.4

44.8

43

39.7

49.2

19

11⁄4" BSP

M45 x 2

Red

¥0

10250

28

30.9

29

26.5

35.3

19

M27, M28

M30 x 1.5

Red

¥0

10249

59.6

62.6

61

57

66.7

24.6

2" BSP

-

Red

¥0

10237

12.1

13.9

12.3

10.6

17.5

11

M12

9⁄16

Red

¥0

10208

18.5

20.9

19.3

17.1

24.6

14.3

3⁄4" UNF

M22 x 1.5

Red

¥0

10181

33.3

37.2

35.6

31.7

41.6

22.2

1" BSP

M38, 11⁄8"BSP

Red

¥0

10174

11.5

13

11.5

10

16.7

9.5

-

M14 x 1.5

Red

¥0

10168

45.2

49

47

43.7

53.4

24.5

13⁄8" BSP

M48, 11⁄2" BSP

Red

¥0

10154

31.1

34.4

32.8

29.8

38.1

19

M33, M32, 1 1⁄4" UNF

M36

Red

¥0

10136

23.4

26.4

24.4

21.4

29.3

17.5

M24

3⁄4" BSP, M27, M26

Red

¥0

10114

10.9

12.3

10.7

9.1

15.9

9.3

1⁄8" BSP

1⁄4" BSP, 1⁄2" UNF

Red

¥0

10086

48.6

51.2

48.9

46.7

55.5

18.7

M48, 1 1⁄2" BSP

M52

Red

¥0
