固定圧縮ロック

メールアドレス

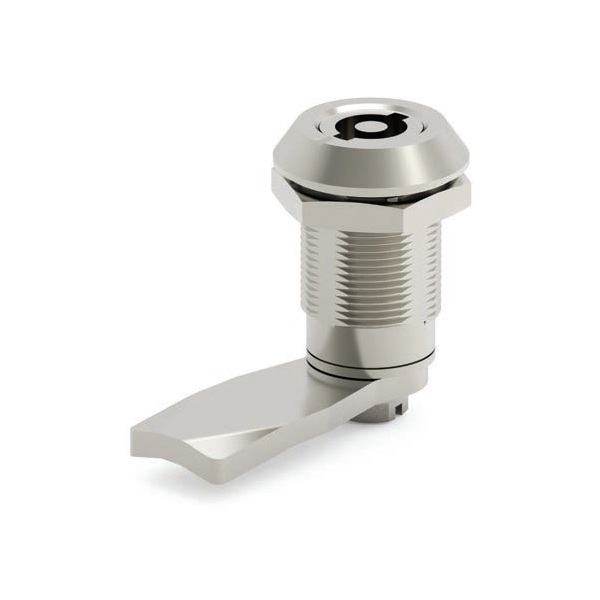

sr6412_p_1_1

• IP65

• ロックの圧力比は6㎜です。

• ラッチがほど良い圧力を加え、音を遮断します。

• 取付穴サイズ20.2mm x 22.2mmと19.2mm x 22.2mmの2つがあります。







「本Website掲載単価は御参考価格です。 御手数をお掛けして 申し訳ございませんが、 御見積価格を御提示させて頂きますので、
以下のアドレスまで御連絡を頂けます様 御願い申し上げます。」
** sales@essentracomponents.jp/ CSECJapan@essentra.com ご不便をおかけして申し訳ございませんが、
何卒よろしくお願い申し上げます。

図面ダウンロードは会員登録・ログインが必要となります。



サンプル パーツ
No 		Key Type Head Style Grip Range Full Material Finish Latch Style Mounting Hole Dimensions Colour Maximum Compatible Door Thickness Special Features (All) Head Diameter (mm) Mounting Hole Width Mounting Hole Length Maximum Compression Compatible Door Thickness Range Keeper Width Body Center to Keeper Frame Distance Latch Material Fixing Type Cam Material Handle Type Housing Material Head Height (mm) Material <
ユニット
単位 		単価 在庫 数 合計金額 添付
0403404261E Slotted Slotted 20.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403404260E Slotted Slotted 22.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403404259E Slotted Slotted 24.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403404238E Slotted Slotted 28.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403404234E Slotted Slotted 38.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403404231E Slotted Slotted 35.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403404230E Slotted Slotted 32.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403403761E 3.0 mm Double Bit 3.0 mm Double Bit 20.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403403760E 7.0 mm Triangle 7.0 mm Triangle 22.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403403759E 7.0 mm Triangle 7.0 mm Triangle 24.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403403738E 7.0 mm Triangle 7.0 mm Triangle 28.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403403734E 7.0 mm Triangle 7.0 mm Triangle 38.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403403731E 7.0 mm Triangle 7.0 mm Triangle 35.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403403730E 7.0 mm Triangle 7.0 mm Triangle 32.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403402861E 8.0 mm Square 8.0 mm Square 20.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403402860E 8.0 mm Square 8.0 mm Square 22.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403402859E 8.0 mm Square 8.0 mm Square 24.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403402838E 8.0 mm Square 8.0 mm Square 28.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403402834E 8.0 mm Square 8.0 mm Square 38.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403402831E 8.0 mm Square 8.0 mm Square 35.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403402830E 8.0 mm Square 8.0 mm Square 32.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403401361E 3.0 mm Double Bit 3.0 mm Double Bit 20.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403401360E 3.0 mm Double Bit 3.0 mm Double Bit 22.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403401359E 3.0 mm Double Bit 3.0 mm Double Bit 24.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403401338E 3.0 mm Double Bit 3.0 mm Double Bit 28.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403401334E 3.0 mm Double Bit 3.0 mm Double Bit 38.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403401331E 3.0 mm Double Bit 3.0 mm Double Bit 35.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0403401330E 3.0 mm Double Bit 3.0 mm Double Bit 32.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 19.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401404261E Slotted Slotted 20.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401404260E Slotted Slotted 22.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401404259E Slotted Slotted 24.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401404238E Slotted Slotted 28.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401404234E Slotted Slotted 38.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401404231E Slotted Slotted 35.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401404230E Slotted Slotted 32.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401403761E 3.0 mm Double Bit 3.0 mm Double Bit 20.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401403760E 7.0 mm Triangle 7.0 mm Triangle 22.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401403759E 7.0 mm Triangle 7.0 mm Triangle 24.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401403738E 7.0 mm Triangle 7.0 mm Triangle 28.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401403734E 7.0 mm Triangle 7.0 mm Triangle 38.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401403731E 7.0 mm Triangle 7.0 mm Triangle 35.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401403730E 7.0 mm Triangle 7.0 mm Triangle 32.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401402861E 8.0 mm Square 8.0 mm Square 20.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401402860E 8.0 mm Square 8.0 mm Square 22.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401402859E 8.0 mm Square 8.0 mm Square 24.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401402838E 8.0 mm Square 8.0 mm Square 28.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401402834E 8.0 mm Square 8.0 mm Square 38.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401402831E 8.0 mm Square 8.0 mm Square 35.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401402830E 8.0 mm Square 8.0 mm Square 32.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401401361E 3.0 mm Double Bit 3.0 mm Double Bit 20.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401401360E 3.0 mm Double Bit 3.0 mm Double Bit 22.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401401359E 3.0 mm Double Bit 3.0 mm Double Bit 24.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401401338E 3.0 mm Double Bit 3.0 mm Double Bit 28.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401401334E 3.0 mm Double Bit 3.0 mm Double Bit 38.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401401331E 3.0 mm Double Bit 3.0 mm Double Bit 35.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
0401401330E 3.0 mm Double Bit 3.0 mm Double Bit 32.0 mm Stainless Steel 316 Stainless Steel Flat 22.2 x 20.2 mm Natural 18.0 mm IP65 30.0 mm 20.2 mm 22.2 mm 6.0 mm 18.0 mm 19.0 mm 45.0 mm Stainless Steel 316 20.2 x 22.2 mm Stainless Steel AISI 316 Key Operated Stainless Steel 316 6.0 mm Stainless Steel
¥0 Check
